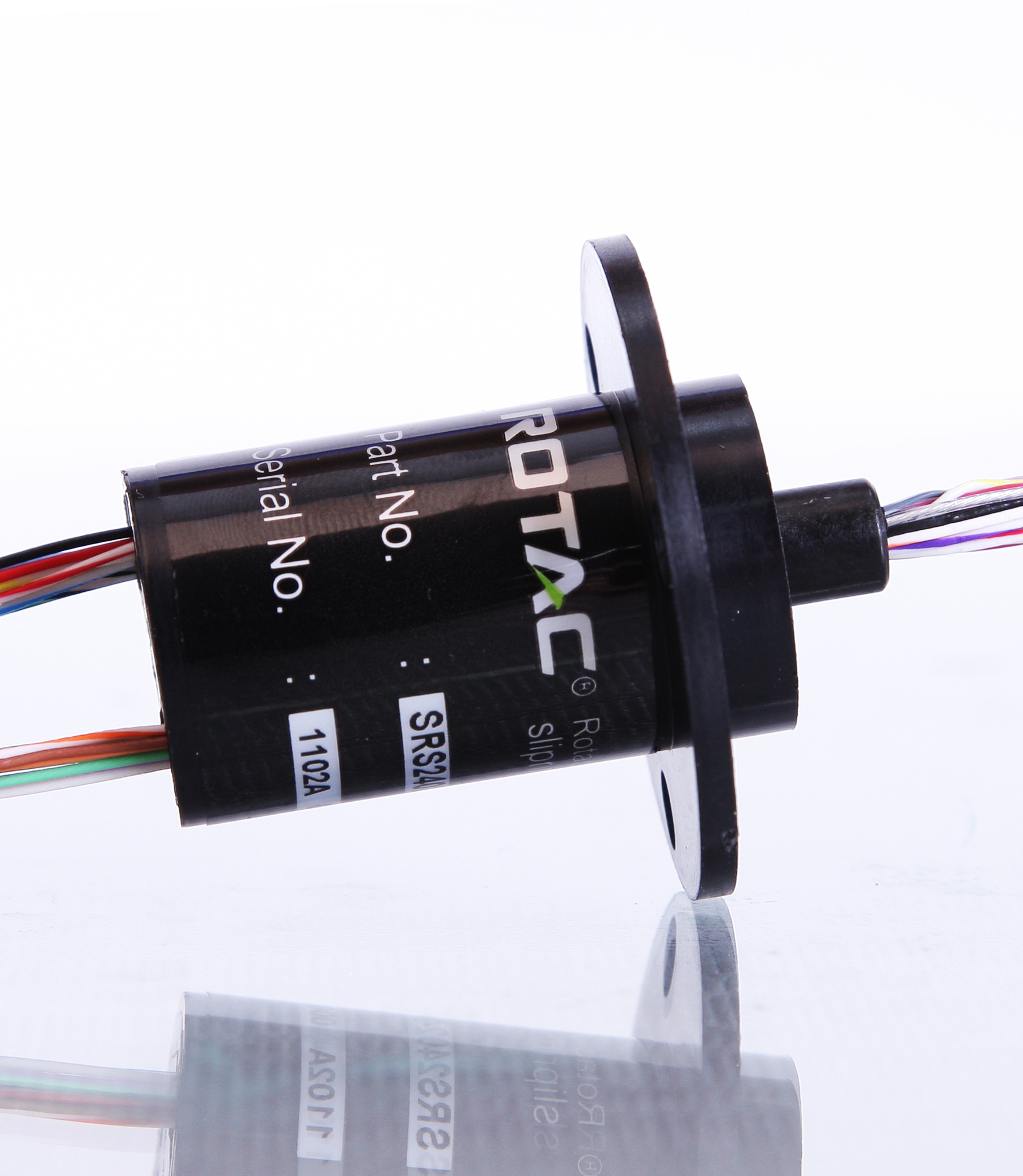

SRS2402 Series

Miniature Slip Ring Assemblies
Specification
Size
OD : 24 / L : 32.6-66.1
No. of Ch.
24~56
Voltage
240VDC/240VAC
Current
2A
Rotating speed
100RPM
Mounting
End mounting
Application
CCTV, Medical equipment, cable reels, robotics, etc
advantage
Transfers power & signal, compact size, Gold Vs Gold contact

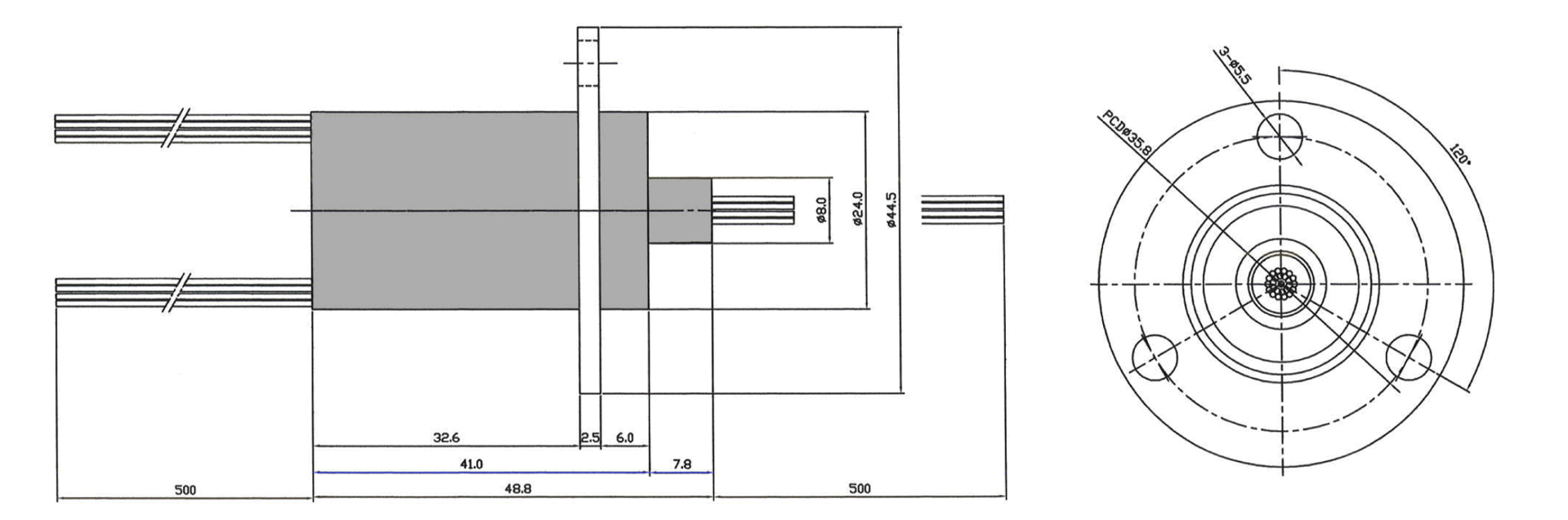

[Dimensions]
Part Number
Length "L"
SRS2402-24
32.6mm
SRS2402-36
46.0mm
SRS2402-56
66.1mm
